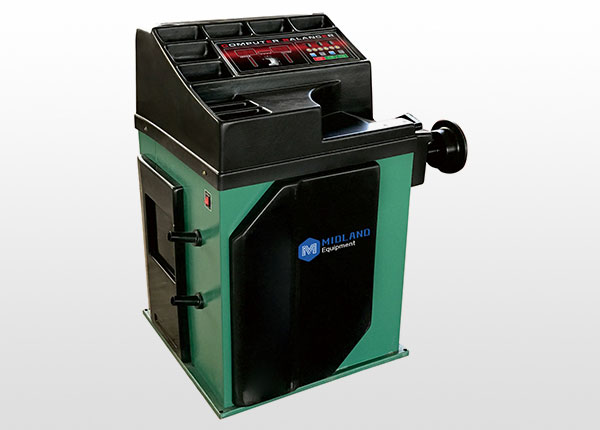

Strengthen the whole structure,magnificent design
The machine is equipped with large&small 6 cones, longer chassis and thicker shaft
Do Iveco, Isuzu, Bus, car and other wheels
High-precision spindle with a strict heat treatment process to improve the spindle strength, wear
resistance and service life
Built-in multiple balancing methods for different rim structures
Three kinds of positioning options
Built-infault diagnosis and self-calibration function
Unit conversion program, g-ounce,millimeter-inch
380V optional
TECHNICAL PARAMETERS
| Voltage | 110/220/380V |
| Rim diameter | 12-24" |
| Mix wheel diameter | 980mm |
| Mix wheel width | 4-15" |
| Power | 0.25/0.37kw |
| Rim center diameter | ≤145/165mm |
| Balance cycle | 7s |
| Speed | 180rpm |
| Precision | ±1g |
| Packing | 1150*830*1200mm |
| Net/Gross weight | 145kg/171kg |
