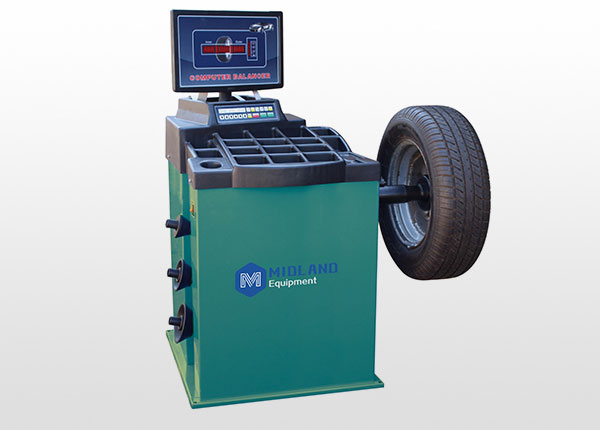

Wheel Balancer ML-988
Product introduction

High-precision spindle with a strict heat treatment process to improve the spindle strength,wear resistance and service life

Enhanced chassis design substantially increasing the stability of the machine

2Dsysterm--automatically input A,B,Dvalue

3 groups showing windows, parameters at a glance,easy to operate

Static balance,dynamic balancing operation procedures

A variety of ALU sticking lead selection procedures, suitable for different tire requirements

Decompose and hide the balance block to the SPO function on the back of the spoke

Geometric operation system,with theinternal scale to achieve the function that inner edge of the rim to paste the lead

Unit conversion programg-ounce,millimeter- inch

Protect hook isoptional,putthecover automatically start function

Built-in selftest,fault diagnosis and self- calibration function


TECHNICAL PARAMETERS


Voltage
110/220/380V
Rim diameter12-24"
Mix wheel diameter
980mm
Mix wheel width
4-15"
Power
0.25/0.37kw
Rim center diameter
≤145/165mm
Balance cycle
7s
Speed
180rpm
Precision
±1g
Packing
1150*830*1200mm
Net/Gross weight145kg/171kg
