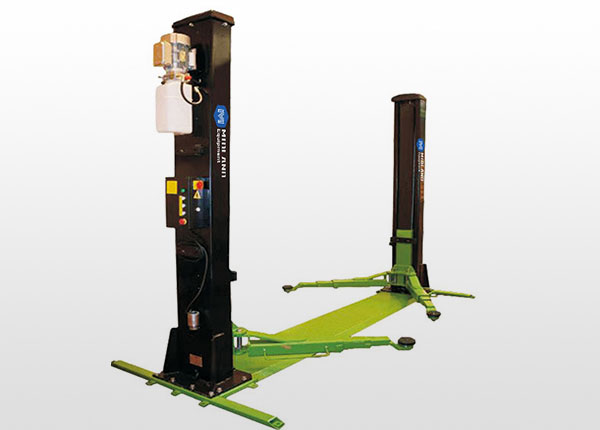

Base plate 2 post lift with two side manual lock release
Precision locking gear design. Exclusive design of cable wheels protector.
Aluminum motor and steel oil tank is an optional (For export)
TECHNICAL DATA
| ML-ES5000H | |
| Lifting Capacity | 4200kg/5000kg |
| Lifting Height | 1900mm |
| Lifting Time | 50-60s |
| Total Height | 2760mm |
| Total Height | 4020mm/4150mm |
| Width between pillars | 2780/2920mm |
| Lane Width | 2520/2640mm |
| Power Supply | 220v/380v |
| Net Weight | 600kg/650kg |
| Packing size | 2800*450*710mm |
