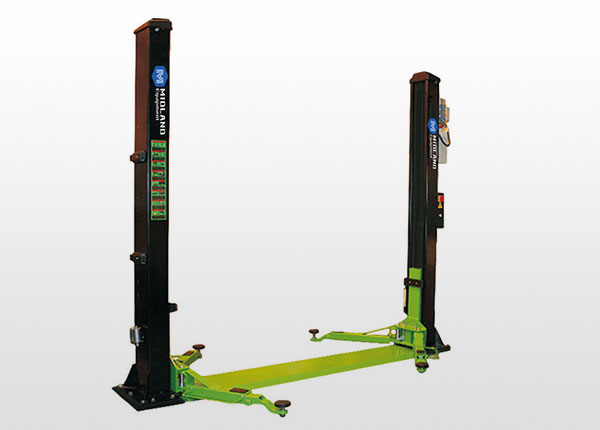

Base plate 2post lift with two side manual lock release
Precision locking gear design. Exclusive design of cable wheels protector.
Aluminum motor and steel oil tank is an optional (For export)
TECHNICAI DATA
ML-ES4200H | |
Lifting Capacity | 4200kg/5000skg |
Lifting Height | 1900mm |
Lifting Time | 50-60s |
Total Height | 2760mm |
Total Height | 4020mm/4150mm |
Widtn between pillars | 2780/2920mm |
Lane Widtn | 2520/2640mm |
Power Supply | 220v/380v |
Net Weight | 600kg/650kg |
Packing size | 2800*450*710mm |
