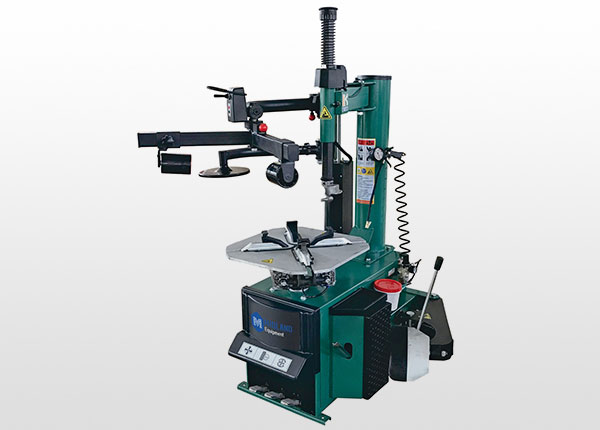

Tyre Changer ML-630
Product introduction

Reversingswitchwith high-strengthsterlingsilvercontacts.

24-inch standardscalemarketslidingboatwith spring steel, to prevent the deckandthe market between wearand dirtinto the slide,so clawtelescopicmoresmoothlyandeffectively protect the broader market life.

Disassemblyofflattires,hard-arm tires do not hurt the rim and tires.

Tire lifting function, easy to operate,fast.

Disassembly of flattires,explosion-prooftires, hard-arm tires do not hurt the rim and tires.

360-degree rotation of the tire pressure freewheeling head,using aluminum three-pedal type,export model.

High-grade non-slip scratch resistanthigh-qualityduck head,effectively reducing the damage to the tire rim

Exchange valve,stem with stainless steel.

New left auxiliary arm,with all the features around dual robots.

large shove lsheath with thick 6mm anti-skid design.

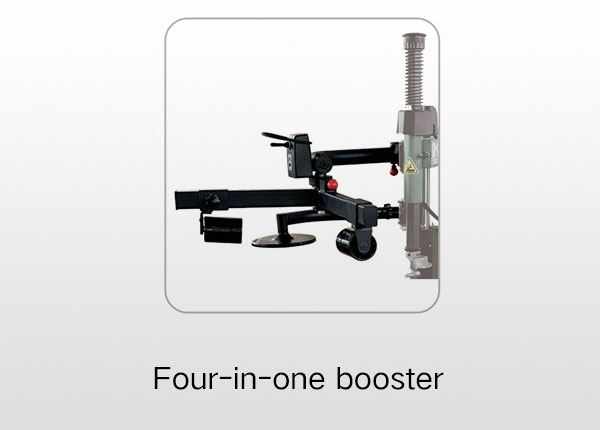

Configure four-in-one automatic booster.

Top Power Helper(TPH)functions tire lifting,rim pressing and centering,moving alongwithwheel rotation,is for faster operation.

Presse requipped on mounting head

Multiple functioned with twin pressing/lifting tools.

Run-Flattire competent, good for all types of wheels.


TECHNICAL PARAMETERS


Voltage
220/380V
Rim Clamping from outside
10-22"
Rim Clamping from inside12-24"
Rim Diameter1050mm
Wheel width
4-13"
Motor Power
1.1/0.75kw
Working Rotation Speed6.8rpm
Working air pressure
0.7-0.8MPa
Gross/Net weight420kg/340kg
Packing Size
1250*900*1000mm
