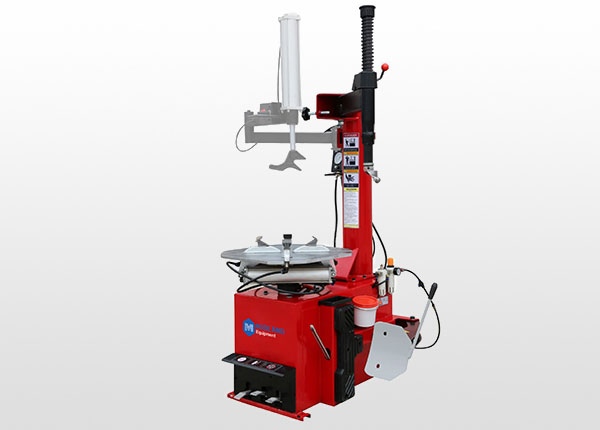

Tyre Changer ML-8001T
Product introduction

FUNCTION

Application range:Applicable for changing and inflating car tires whose rim diameter is between 10"-24".

Productfeatures:

1.Adopting semi-automaticlateral swinging arm to change tires

2.Standard equipped with extra fast airinflation.

3.With two gears for inftation---independent inflation and fast air inflation device,it can be controlled by one pedal switch,(Optional )

Machine functions:

1.Thedemount/mount head,made of special steel and four times harder than traditional stainless steel demount/mount head, is lifelong warranty.

2.The hexagon shaft is processed by 250t press machine,This once forming process keeps its angle precise and stable.

3.High-standard water oil separator ensures the pneumatic system work more efficiently

4.The once forming mobile slider and the design of processing machinery structure made it not easy to deform

5.The mounting head,jaws,crowbar and spade are all equipped with plastic protectors,which ensures no damage to wheel rims.

6.Bead breaker arm structure optimization increases the bead break power by 1.5 times

7.Drawer pedal design makes it easy to assemble and convenient after sale service Machine quality:Thisproduct gained Europe CE certification.


TECHNICAL PARAMETERS


Rim Clamping From Outside
10"-22"Working Pressure
8-10bar
Rim Clamping From Inside12"-24"Voltage415V/380V/240V/220V/110V
Max. Wheel Diameter
1040mmPower0.75KW/1.1KW/1.5KW
Tire Width
3"-15"Machine Weight186kg
